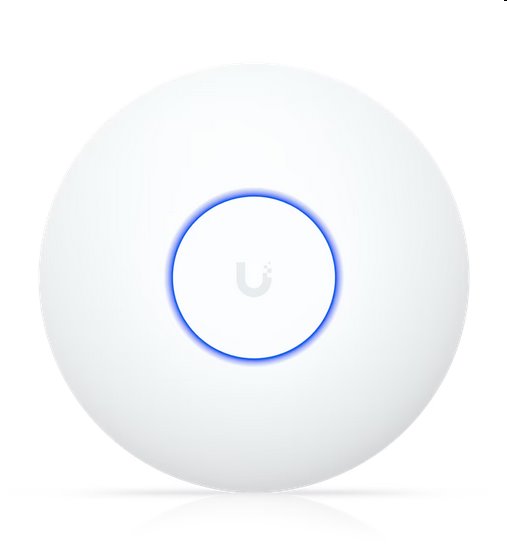

Ubiquiti UniFi AP 7 Lite WiFi7 (688/4300/---Mbps)

!!!! dodávka na cestě .. skladem 10.3.2025 !!!!

kompatkní, stopní / nástěnná montáž, WiFi 7 AP se 4 samostanými streamy a datovým portem 2.5 GbE LAN

- WiFi 7
- 4 samostatné streamy
- pokrytí 115 m2
- 200+ připojených zařízení
- napájeno přes PoE
- 2.5 GbE uplink

Technical Specifications
Mechanical
Dimensions O171.5 x 33 mm (O6.8 x 1.3")
Weight 313 g (11 oz)
Enclosure material Polycarbonate
Mount material Polycarbonate, galvanized steel (SGCC)


Hardware
Networking interface (1) 1/2.5 GbE RJ45 port
Management interface Ethernet
Power method PoE
Power supply UniFi PoE switch
Supported voltage range 42.5—57V DC
Max. power consumption 13W
Max. TX power
2.4 GHz   23 dBm
5 GHz   24 dBm
6 GHz    –

MIMO
2.4 GHz   2 x 2 (DL/UL MU-MIMO)
5 GHz   2 x 2 (DL/UL MU-MIMO)
6 GHz    ---

Max. data rate
2.4 GHz   688 Mbps (BW40)
5 GHz   4.3 Gbps (BW240*)
6 GHz    –

*Depends on regulatory region.
Antenna gain
2.4 GHz   4 dBi
5 GHz   5 dBi
6 GHz   ---

LEDs White/blue
Button Factory reset
Mounting Wall/ceiling (Included)
Ambient operating temperature -30 to 40° C (-22 to 104° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC


Software
WiFi standards 802.11a/b/g/n/ac/ax/be (WiFi 6, WiFi 7)
Wireless security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
BSSID 8 per radio
VLAN 802.1Q
Advanced QoS Per-user rate limiting
Guest traffic isolation Supported
Concurrent clients 200+


Supported Data Rates
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11ax (WiFi 6) 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11be (WiFi 7) 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240*)
*Depends on regulatory region.


Application Requirements
UniFi Network Version X and later
UniFi OS Version X and later
